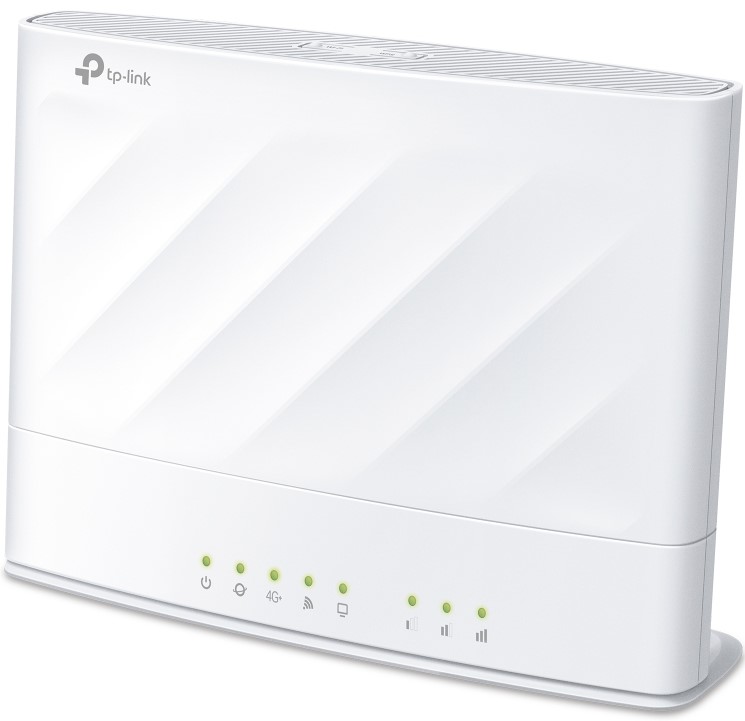

TP Link Archer MX700 AX1500 Dual Band WiFi LTE Router

Description

TP Link Archer MX700 Dual Band WiFi LTE Router – Supports 4G+ Cat6 Up to 300Mbps Speed, Dual Band Wi-Fi 6 Speed 1201Mbps on 5GHz and 300Mbps on 2.4Ghz, Connect Up to 128 Concurrent Devices, Nano Sim Card Slot, 1 x Gigabit LAN/WAN Port, 3 x Gigabit LAN Ports Interface, 2 x Internal 4G/3G Antennas, 2 x Internal Wi-Fi Antennas, 2 x External Antennas Ports, Wireless Security, Retail Box, 6 Months Warranty.

Product Overview

The TP-Link Archer MX700 is a 4G+ AX1500 dual-band Wi‑Fi 6 LTE router that combines mobile broadband with fast home Wi‑Fi for places without fixed internet. It supports Nano SIM, 4G+ Cat 6 speeds up to 300 Mbps down / 50 Mbps up, and dual-band Wi‑Fi with 1201 Mbps on 5 GHz plus 300 Mbps on 2.4 GHz.tp-link+1 It includes 1× Gigabit LAN/WAN port and 3× Gigabit LAN ports, making it easy to connect wired devices while still sharing the mobile connection across the network. Security and management features include WPA3, IPv6, guest networks, TP-Link Cloud, local/remote management, and common tools like port forwarding and dynamic DNS.

Specifications

•Product Code: ARCHER MX700
•Description: TP Link Archer MX700 4G+ AX1500 Dual Band Wi-Fi LTE Router
•Network Mode 3G and 4G
•Speed: 4G+ Cat6
•300 Mbps Download Speed
•50 Mbps Upload Speed
•SIM Type: Nano SIM Card
Hardware Features
•Interface: 1× Gigabit LAN/WAN Port + 3× Gigabit LAN Ports
•Dimensions ( W x D x H ): 7.86×5.85×2.66 in (199.7×148.6×67.5 mm)
•Antenna: 2× Internal 4G/3G Antennas + 2× Internal Wi-Fi Antennas + 2× External Antenna Ports
Wireless Features
•Wireless Standards: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz
•Frequency: 2.4 GHz and 5 GHz
•Signal Rate: 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
Reception Sensitivity
5 GHz:
•11a 54M: -77 dBm
•11ax HE20:-64 dBm
•11ax HE40: -61 dBm
•11ax HE80:-59 dBm
•11ac VHT20: -69 dBm
•11ac VHT40: -66 dBm
•11ac VHT80 : -63 dBm
•11n HT20: -74 dBm
•11n HT40: -71 dBm
2.4 GHz:
•11g 54M: -78 dBm
•11n HT20: -75 dBm
•11n HT40: -72 dBm
•Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM
•Wireless Security: 64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise, WPA/WPA3 Personal

Software Features
•Quality of Service: Bandwidth Control
•Security: IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control
•Operating Modes: 3G/4G Router, Wireless Router
•WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
•Management Features: TP-Link Cloud, Local Management, Remote Management
•DHCP: Server, DHCP Client List, Address Reservation
•Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
•Dynamic DNS: TP-Link, DynDns, NO-IP
•Protocols: IPv4, IPv6
•Guest Network: 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1
•Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

•Operating Temperature: 0℃~40℃ (32℉ ~104℉)
•Operating Humidity: 10%~90% non-condensing
•Storage Humidity: 5%~90% non-condensing
